Excellent Applications
• Carbopol® Dispersion
• Guar Gum Dispersions
• Xantham for Gels and Lotions
• CMC, HPMC, Crystaline CMC
• Pigments and Oxides
• Aloe, PVA, Natrosol
• Polythylene Oxide
• Proper dispersion reduces hydration time by as much as 90%
Principle Of Operation
ZC In-Line Set-Up
ZC Low Profile
Single Tank Set-Up
“Innovative Technology for the Pharmaceutical, Food and Cosmetic Industries”
“ZC” Powder Dispersion Unit
The Quadro-Ytron “ZC” is designed specifically to disperse extremely difficult-to-wet powders into a liquid stream instantly and completely.
This is achieved by the presence of significant vacuum in the reactor head due to the liquid seal created between the rotor and stator.
This vacuum ensures that powders from the hopper above are drawn into the reactor head, where they are sheared into the liquid phase before hydration takes place (up to 25″ Hg in 1.5 seconds is generated).
The molecular remains undamaged and the result is a smooth, consistent, lump free slurry.
The “ZC” Unit Offers:
- The ability to hydrate completely all to the difficult-to-wet gums and polymers
- Capacities from 10 to 50 gallons/min
- Concentrations from 1 to 15% by weight
- Up to 37% powder savings
- Reduced batch time / No powder wastage
- No unnecessary air entrainment
- Easy clean-up and portability
- Optional vacuum delivery system for completely dust free operation

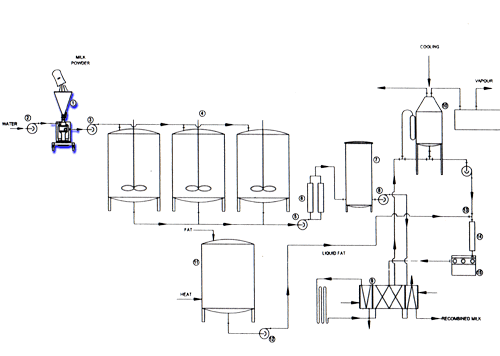

Utilization of Jet Mixer in an In-Line Process
