Typical Application

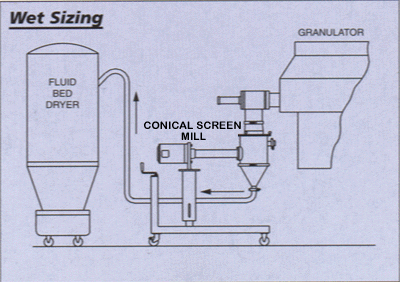

Wet Sizing

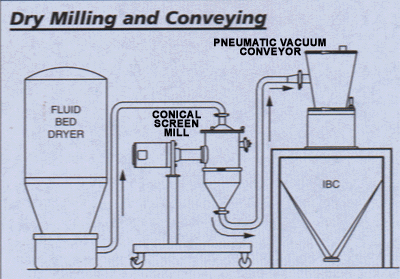

Dry Miling & Conveying

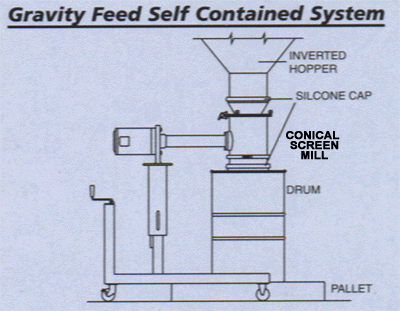

Gravity Feed Self Contained System

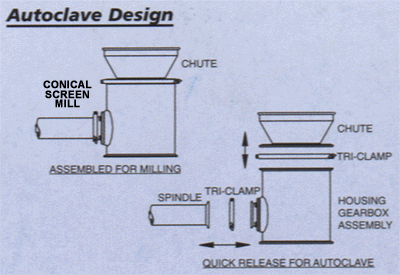

Autoclave Design

    “Innovative Technology for the Pharmaceutical, Food, Cosmetic and Fine Chemical Industries”

Benefits Of The Underdriven Comil

  • Substantially higher capacities than conventional mills
  • Product flow optimized by vertical side walls and “no offset” product path.
  • Ideal for integrated pharamceutical systems
  • Extremely short inlet to outlet distance – fits into tight space requirements
  • Easy to clean, low RPM, low surface area and low dust design

Technical Specifications

ModelU10U20U30
Capacities
kg/hr
125-400675-2,2751,600-6,825
Inlet to Outlet Height229 mm330 mm508 mm
Screen Diameter127 mm203 mm305 mm
Power1.5 kW4.0 kW7.5 kW

Model U10

Model U20

Model U30
